Ping' em 1.0


Overview

Ping 'em pings each target, waits for responses and then pauses. Statistics are shown for each cycle of send and receive.

Ping' em pinging 7 targets with 15 second intervals


Getting Started

for Users

Program is a single executable pingem.exe in pingem10.zip. Download the file and unzip the executable file to a folder.

Windows 2000 (Server), XP, 2003 Server

Please disable the Windows Firewall completely. You may be able use a third party firewall with Ping' em.

Start a Comand Prompt, navigate to the folder where you have unzipped pingem.exe, and run pingem from there.

You must be logged on as a user who is Computer Administrator or member of the administrators group on the computer in order to run Ping' em. This will probably be the case on your own home computer.

Windows Vista, 2008 Server, Windows 7

Start a Command Prompt as administrator.

Command Prompt - Run as administrator

Navigate to the folder where you have unzipped pingem.exe, and run pingem from there.

If you see this error message:

Unable to create raw socket
Error code: 10013 (271dh)
"An attempt was made to access a socket in a way forbidden by its access permissions. "
It is probably because you haven't started the Command Prompt as administrator.

You must be logged on as a user who is Computer Administrator or member of the administrators group on the computer in order to run Ping' em. This will probably be the case on your own home computer.

for Developers

Ping' em is written in C++ and can be build with Microsoft Developer Studio version 6 or 7. Source code is available for download in pingem10src.zip. You may also browse source code processed by Doxygen online here. (Opens a new browser window).


Features

Statistics

Statistics for each target are

now
The last response time in milliseconds. If target cannot be reached the last response is (*). In log files unreachable responses have the value -1.
minimum
Minimum response time in milliseconds. If target cannot be reached the minimum response time is 0.
average
Average is the arithmetic mean of response times in milliseconds as defined in en.wikipedia.org/wiki/Average. If target cannot be reached the average response time is 0.
maximum
Maximum response time in milliseconds. If target cannot be reached the maximum response time is 0.
std.dev
Standard deviation as defined in en.wikipedia.org/wiki/Standard_deviation. It is a measure of the spread out of the values.
skipped
Skipped is the count of packets not sent or responses not received.
skip%
Skip% is the percentage of responses of packets not sent or responses not received.

Logging

Ping' em only shows the last response time and statistics on screen. All responses can be logged in a file by specifying a log file.

Example:

pingem localhost 192.168.0.1 -o pingem.log

Log file is created if it doesn't already exist and contains the time where the ping was sent, the target and the response in milliseconds:

Time/Target	localhost	192.168.0.1
06/04/2005 14:04:46	0.3	1.5
06/04/2005 14:04:48	0.1	1.4
06/04/2005 14:04:50	0.1	1.3

Columns are separated by the tab character. Date and responses are formatted according to the current Regional and Language Options in Windows. Time is always in 24 hour format.

You may also have log files created for each hour of the day or each date of the month.

-d or -daily
Creates a log file for every day using the filename specified for logfile as a pattern: filenameYYYYMMDD.ext
YYYY is the 4 digit year, MM is the month and DD is the date.
Example:
pingem localhost 192.168.0.1 -do pingem.log
creates or appends to the file pingem20050604.log on June 4, 2005
-u or -hourly
Creates a log file for every hour using the specified filename for log file as a pattern: filenameYYYYMMDD_HH.ext
YYYY is the 4 digit year, MM is the month, DD is the date and HH is the hour 00-23.
Example:
pingem localhost 192.168.0.1 -uo pingem.log
creates or appends to the file pingem20050604_14.log on June 4, 2005, 2PM

Targets file

Targets can be specified on the command line and in a targets file.

A targets file is a text file with one target per line.

Example:

localhost
192.168.0.1
www.google.com
www.stofa.dk
www.internetkvalitetsguide.dk
www.cybercity.dk
www.get2net.dk

Targets on command line are parsed and added together with targets in file.

Wait and Pause

Ping' em Waits for packets to be sent and received and Pauses between sending.

Example:

pingem -w 5000 -p 15000 localhost 192.168.0.1
TimeAction
00:00Start sending and receiving
00:05Stop sending and receiving
00:05Pauses
00:20Start sending and receiving
00:25Stop sending and receiving
00:25Pauses
00:40Start sending and receiving
00:45Stop sending and receiving
00:45Pauses

Command Prompt Width

Ping' em uses the available width of the Command Prompt to display as much as possible of long target names.

Long target names are clipped in the middle replacing clipped characters with **. Here is the same Command Prompt as above with a larger width:

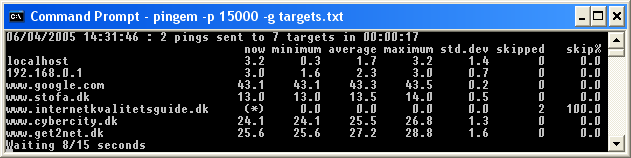

Ping' em pinging 7 targets with 15 second intervals in a wide Command Prompt


Program options

-w ms, -timeout ms
Time in milliseconds to wait while sending to and receiving from targets.
Default value is 1000 ms.
-p ms, -pause ms
Time in milliseconds to pause between sending to and receiving from all targets.
Default value is 1000 ms.
-n n, -count n
Number of pings to send to each target. The default value 0 sets no limit to the number of pings.
-g filename, -targetsfile filename
Reads targets from the specified file. One target name or ip per line.
Targets in file are added to targets specified as parameters.
-o filename, -logfile filename
Sends output of each ping to the specified file.
First line is a header with names of targets.
Remaining lines contains date and time formatted according to the current locale and the response time for each target.
Columns are separated by the tab character.
-d, -daily
Creates a log file for every day using the filename specified for logfile as a pattern: filenameYYYYMMDD.ext
YYYY is the 4 digit year, MM is the month and DD is the date.
-u, -hourly
Creates a log file for every hour using the specified filename for logfile as a pattern: filenameYYYYMMDD_HH.ext
YYYY is the 4 digit year, MM is the month, DD is the date and HH is the hour 00-23.
-q, -quiet
Quiet operation. Only errors terminating the application and their messages are sent to console.
-h, -help
Show this option help text and exit.
-?
Show this option help text and exit.
-exitcodes
Show available exit codes.
-license
Show license information.

Program exit codes

Program exit codes can be used in batch files.


Downloads


License

Ping' em copyright Erik Frankenfeld

This program and the source code are free software. You may use, modify and redistribute them at your own risk.


History

Version 1.0 - June 26, 2005
First public release.

Known Problems

Version 1.0

July 9, 2005: Usage of unkown option, resembling known options with parameters, shows wrong error message.
Example: pingem -licens displays an error on missing parameters for the count option.
It should report that -licens is an invalid option.

Hyperlinks

for Users

for Developers


Updated March 22., 2016
